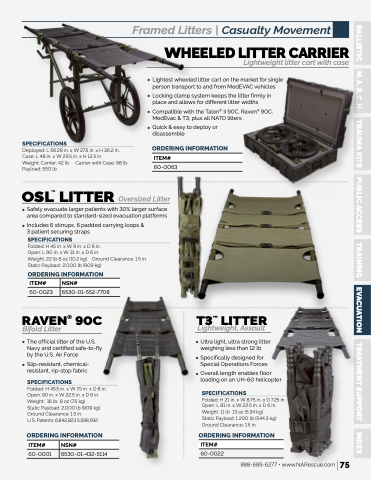

Page 75 - 2018_PublicSafety_eCatalog

Framed Litters | Casualty Movement
SPECIFICATIONS
Deployed: L 56.29 in. x W 27.5 in. x H 36.2 in. Case: L 48 in. x W 29.5 in. x H 12.5 in.
Weight: Carrier: 42 lb Carrier with Case: 98 lb Payload: 550 lb
OSLTM LITTER
• Safely evacuate larger patients with 30% larger surface area compared to standard-sized evacuation platforms
•Includes 6 stirrups, 6 padded carrying loops & 3 patient securing straps
SPECIFICATIONS
Folded: H 45 in. x W 9 in. x D 8 in.
Open: L 90 in. x W 31 in. x D 6 in.
Weight: 22 lb 6 oz (10.2 kg) Ground Clearance: 1.5 in. Static Payload:: 2,000 lb (909 kg)
ORDERING INFORMATION
60-0023 6530-01-552-7708
WHEELED LITTER CARRIER
Lightweight litter cart with case
• Lightest wheeled litter cart on the market for single person transport to and from MedEVAC vehicles
• Locking clamp system keeps the litter firmly in place and allows for different litter widths
• Compatible with the Talon® II 90C, Raven® 90C, MedEvac & T3, plus all NATO litters
• Quick & easy to deploy or disassemble
ORDERING INFORMATION
60-0063
ITEM#
Oversized Litter
ITEM#
NSN#
RAVEN® 90C
T3TM LITTER
Bifold Litter
Lightweight, Assault
• The official litter of the U.S. Navy and certified safe-to-fly
• by the U.S. Air Force Slip-resistant, chemical-
resistant, rip-stop fabric
SPECIFICATIONS
Folded: H 45.5 in. x W 7.5 in. x D 8 in. Open: 90 in. x W 22.5 in. x D 6 in. Weight: 16 lb 8 oz (7.5 kg)
Static Payload: 2,000 lb (909 kg) Ground Clearance: 1.5 in.
U.S. Patents: 6,842,923 5,598,592
ORDERING INFORMATION
• Ultra light, ultra strong litter weighing less than 12 lb
• Specifically designed for Special Operations Forces
• Overall length enables floor loading on an UH-60 helicopter
SPECIFICATIONS
Folded: H 21 in. x W 8.75 in. x D 7.25 in Open: L 81 in. x W 22.5 in. x D 6 in. Weight: 11 lb 13 oz (5.34 kg)
Static Payload: 1,200 lb (544.3 kg) Ground Clearance: 1.5 in.
ORDERING INFORMATION
ITEM#
NSN#
ITEM#
60-0001 6530-01-432-5114
60-0022
888-689-6277 •
ww.NARescue.com | 5
