Cuattro Max
Cuattro Max™ Product Features
- Proprietary Automatic Exposure Detection with True OnePulse
- Fast and Superior Sensitivity(lower noise, higher signal)
- Nearly Zero EMI emissions for safe field operations
- Latest Detector Technologies
- Modular Form Factor to increase image size from 34 in. long to 51 in.
- Onboard image storage
- Thin Radiolucent Bottom Edge
- Exposure Anytime Technology
- Offline image capture and onboard storage
- Power on detector and expose(with or without acquire device-software)
- Automatically pushes images to tablet when available
- Long Range Wireless Control and Data
- Long Range wireless technologies
- Control Generator and Detector simultaneously
- Fast Image transfer and display
- Best Image Quality
- 16-Bit Dynamic range
- Low Dose Capable
- High-sensitivity mode to view dense objects
- Target-specific multi-frequency image tuning algorithms
Description
A Smarter direction in Digital Radiography… Better. Much better.

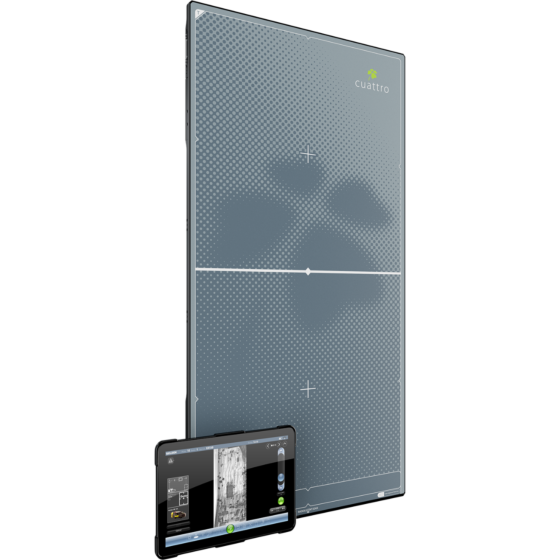

Cuattro Max: A seamless, stitching free long format digital radiography system designed by Cuattro with Bomb Techs, for Bomb Techs. Featuring a truly groundbreaking, best-in-class 140-micron, native 16-bit 17"x34" x-ray detector and a rugged 13.3" sunlight readable tablet with hot swappable batteries, this system is your go to solution for any EOD application that requires high portability. Because of our innovative on-board memory storage, the system is also capable of running in "CR/DR" mode, which allows for tablet and connectivity free acquisition of images - allowing image capture when the tablet is offline or uncharged.
Package includes:
- 1 x Cuattro MAX (140µm) 17 in. x34 in. Glass, AED+, Wireless, Gadox X-Ray Panel with 2 x batteries, 1 x quick attach/detach handle and 1 x tray quick charger and required standard cables
- 1 x 13.3" Rugged Tablet with 512GB SSD, 16GB RAM, Capacitive Touch LCD, Windows 11 IoT Enterprise, Power Supply, 3 Year Standard Warranty, TPM 2.0, TAA Compliant and INCLUDING CUATTRO TACTICAL SOFTWARE
- 1 x MAX Case with Foam-Fitted for the System
- 1 x Clip-On Bipod for Cuattro MAX Detectors with Adjustable Legs (Height and Angles)
Cuattro Max can switch between wireless and wired use*
*Accessory may be required
Cuattro provides a comprehensive 1-year warranty that includes full coverage against defects in materials and workmanship, integrated software support, and access to 24/7/365 U.S.-based Customer Support with Co-Pilot remote assistance for real-time diagnostics, evaluation, resolution of any warranty or service needs, Remote Hardware Monitoring, Advanced Loaner Program (detectors and workstations) and a 99% uptime guarantee.
Specs
Cuattro Max™ Product Features
- Proprietary Automatic Exposure Detection with True OnePulse
- Fast and Superior Sensitivity(lower noise, higher signal)
- Nearly Zero EMI emissions for safe field operations
- Latest Detector Technologies
- Modular Form Factor to increase image size from 34 in. long to 51 in.
- Onboard image storage
- Thin Radiolucent Bottom Edge
- Exposure Anytime Technology
- Offline image capture and onboard storage
- Power on detector and expose(with or without acquire device-software)
- Automatically pushes images to tablet when available
- Long Range Wireless Control and Data
- Long Range wireless technologies
- Control Generator and Detector simultaneously
- Fast Image transfer and display
- Best Image Quality
- 16-Bit Dynamic range
- Low Dose Capable
- High-sensitivity mode to view dense objects
- Target-speci c multi-frequency image tuning algorithms
Cuattro Max™ Software Features:
- Full XTK Integration with Direct Mosaic Input
- Complete Source Integration (5pin and 7pin versions) with Automated Adjustments
- Quick Set and Shoot workflow
- Cuattro True OnePulse Mode
- Complete set of Image tools with Advanced Multi-Frequency processing tools
- Multi- Detector Capable
Package Specs:
- Dimensions: L 44.9 in. x W 25.32 in. x D 16.5 in.
- Total Weight: 68.34 lbs.
17 in. x 34 in. Wireless Detector Specs:
- Model Name . . . . . . . . . . . . . . . . . . . . . M-DET-1734GWX-V1
- Detector TFT Type . . . . . . . . . . . . . . . . a-Si (Amorphous Silicon)
- Scintillator . . . . . . . . . . . . . . . . . . . . . . . .GadOx
- Pixel Pitch . . . . . . . . . . . . . . . . . . . . . . . . 140 micron
- Pixel Matrix . . . . . . . . . . . . . . . . . . . . . . . 3534 x 4302 pixels
- Image Size . . . . . . . . . . . . . . . . . . . . . . . 17 in. x 34 in.
- Active Area . . . . . . . . . . . . . . . . . . .430.08 mm x 860.16 mm
- Active Array . . . . . . . . . . . . . . . . . .3072 x 6144 pixels
- Effective Area . . . . . . . . . . . . . . . . .428.4 mm x 855.4 mm
- Effective Array . . . . . . . . . . . . . . . .3060 x 6110 pixels
- Grayscale . . . . . . . . . . . . . . . . . . . . . . . . . 16 bits
- Wireless Image Acquisition Time . . 6 second image preview/ 12 second final image
- Online Image Storage . . . . . . . . . . . . Yes
- Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.64 lbs. (8kg.)
- Batteries . . . . . . . . . . . . . . . . . . . . . . . . .2
- AED (Auto Exposure Control) . . . . . . Zero EMI Optical trigger
- Other Features . . . . . . . . . . . . . . . . . . . Accelerometer, Auto-orientation
