Cuattro Tactical

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$47,649.99

In stock

Item

20-0133

Carrying Options

Cuattro Tactical Product Features

Proprietary Automatic Exposure Detection with True OnePulse

Fast and Superior Sensitivity(lower noise, higher signal)
Nearly Zero EMI emissions for safe field operations

Latest Detector Technologies

Flexible Non-Glass Substrate for substantial increase in durability and ruggedness
Water and Dust resistant (IP 67 rating)
Onboard image storage (200 images)
Thin bezel edges (2.7mm on two sides)

Exposure Anytime Technology

Offline image capture and onboard storage
Power on detector and expose(with or without acquire device-software)
Automatically pushes images to tablet when available

Long Range Wireless Control and Data

Long Range wireless technologies
Control Generator and Detector simultaneously
Fast Image transfer and display (3-5 secs)

Best Image Quality

HD Image (99 micron)
16-Bit Dynamic range
Low Dose Capable
High-sensitivity mode to view dense objects
Target-specific multi-frequency image tuning algorithms

Description

A Smarter direction in Digital Radiography… Better. Much better.

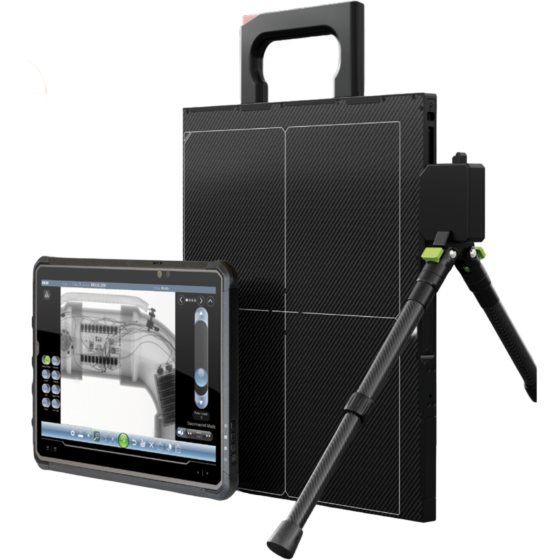

Introducing CuattroTactical, an intuitive ultra-portable tactical digital radiography system designed by Cuattro with Bomb Techs, for Bomb Techs.

Package includes:

1 x Cuattro Tactical (99µm) 10"x12" Glass-Free, AED+, Wireless, Gadox X-Ray Panel with Cuattro SafeSignal Compatibility including 2 x batteries, 1 x quick attach/detach handle and 1 x tray quick charger and required standard cables
1 x 13.3 in. Rugged Tablet with 512GB SSD, 16GB RAM, Capacitive Touch LCD, Windows 11 IoT Enterprise, Power Supply, 3 Year Standard Warranty, TPM 2.0, TAA Compliant and INCLUDING CUATTRO TACTICAL SOFTWARE
1 x Fully Modular Tactical Case/Bag System for Tablet, XR150 Generator, and 10x12in X-Ray Detector–Starter Kit Includes Accessory Sleeves for Clip-In Bipod, 1 x SafeSignal Node, and 2 x Cable/Miscellaneous Attachment Pouches
1 x Advanced Quick Release Clip-In Bipod for Cuattro Wireless Detectors with Adjustable Carbon Legs (Height and Angles)and 1 x Bluetooth Generator COM Control Module Compatible with All Golden Engineering 7-Pin Generators

Cuattro Tactical can switch between wireless and wired use*
Accessory may be required

Cuattro provides a comprehensive 1-year warranty that includes full coverage against defects in materials and workmanship, integrated software support, and access to 24/7/365 U.S.-based Customer Support with Co-Pilot remote assistance for real-time diagnostics, evaluation, resolution of any warranty or service needs, Remote Hardware Monitoring, Advanced Loaner Program (detectors and workstations) and a 99% uptime guarantee.

Specs

Cuattro Tactical Product Features

Proprietary Automatic Exposure Detection with True OnePulse

Fast and Superior Sensitivity(lower noise, higher signal)
Nearly Zero EMI emissions for safe field operations

Latest Detector Technologies

Flexible Non-Glass Substrate for substantial increase in durability and ruggedness
Water and Dust resistant (IP 67 rating)
Onboard image storage (200 images)
Thin bezel edges (2.7mm on two sides)

Exposure Anytime Technology

Offline image capture and onboard storage
Power on detector and expose(with or without acquire device-software)
Automatically pushes images to tablet when available

Long Range Wireless Control and Data

Long Range wireless technologies
Control Generator and Detector simultaneously
Fast Image transfer and display (3-5 secs)

Best Image Quality

HD Image (99 micron)
16-Bit Dynamic range
Low Dose Capable
High-sensitivity mode to view dense objects
Target-specific multi-frequency image tuning algorithms

Cuattro Tactical Software Features:

Full XTK Integration with Direct Mosaic Input
Complete Source Integration (5pin and 7pin versions) with Automated Adjustments
Quick Set and Shoot workflow
Cuattro True OnePulse Mode
Complete set of Image tools with Advanced Multi-Frequency processing tools
Multi- Detector Capable

Tablet Features:

Intel i7 Processor for high speed image processing, diagnostics, and secure software performance
13.3” display with1000 NIT high brightness and Anti-Glare Glass for clear daylight visibility
Glove-friendly responsive touchscreen
IP65 and MIL STD 810G certified to withstand shock, vibration, dust, and water exposure
Hot swappable battery providing continuous operation with over 6 hour runtime per pack
Integrated cameras for eld documentation and secure access

Package Specs:

Dimensions: L 12 in. x W 14 in. x D 3.25 in.
Total Weight: 10 lbs.

10 in. x 12 in. Wireless Detector Specs:

Detector TFT Type . . . . . . . . . . . . Flexible, Non-Glass Substrate
Scintillator . . . . . . . . . . . . . . . . . . . . GadOx
Pixel Pitch . . . . . . . . . . . . . . . . . . . . 99 micron
Pixel Matrix . . . . . . . . . . . . . . . . . . . 2524 x 3036 pixels
Image Size . . . . . . . . . . . . . . . . . . . 10 in. x 12 in. (25.4 cm. x 30.5 cm.)
Grayscale . . . . . . . . . . . . . . . . . . . . . 16 bits
Online Image Storage . . . . . . . . 200 Images
Weight . . . . . . . . . . . . . . . . . . . . . . . 3.75 lb. with batteries installed
Water/Dust Intrusion Rating . . IP67
AED (Auto Exposure Control) . . Zero EMI Optical trigger
Dead Space Margins . . . . . . . . . . 0.11 in. on two sides (Bezel thickness)
Other Features . . . . . . . . . . . . . . . Accelerometer, Auto-orientation
