K-9 Medical Simulator

In stock
Carrying Options

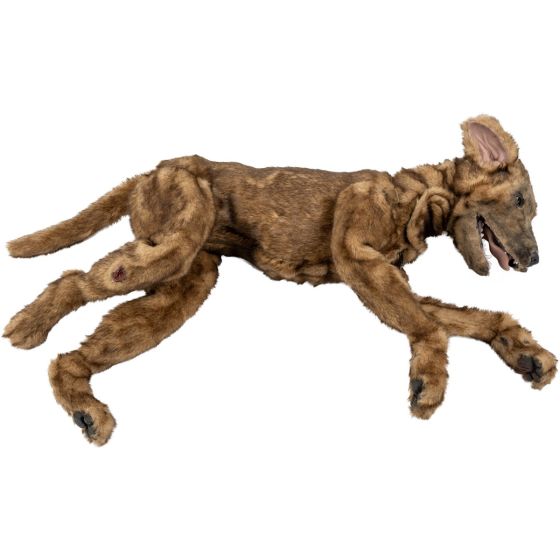

  • Realistically depicts a Belgian Malinois working dog. It has the look and feel of a real dog with realistic limb movement and expanded joint range of motion
  • Welded steel skeleton, with solid metal joints
  • Life-like airway allows for manual manipulation; accepts 10mm ET tubes
  • IV training sites with flash feedback to show successful procedure
  • 4 intraosseous sites: 2 @ greater tubercle of the humerus and 2 @ the tibial head
  • 1L onboard blood reservoir
  • Bleeding wounds facilitate various bleeding control methods
  • Five interchangeable limbs with different injuries – complete amputation, open fracture, soft tissue injuries, road rash/burns, penetrating injury
  • Tracheostomy simulator featuring shaveable fur with multi-layered tissue insert
  • Bilateral Needle decompression/thoracocentesis site allow release of air
  • CPR chest
  • Adjustable pulse – features variable rate, frequency, and pulse pressure
  • Customized wireless remote control via NARS tablet; included with purchase
  • Remote independent lung control and breathing rate
  • Durable fur makes allows easy care and maintenance; it can be hand washed and brushed. Also has shaveable replacement fur for IV sites
  • Rugged exterior for use in all training locations and situations
  • Operated by a single onboard rechargeable NiMH battery. Battery charger included
  • Rugged 3-wheeled deployment bag for storage and transport included (42” x 20” x 15”)
  • K9 weighs approximately 60lbs
  • Total package weight 100 pounds
  • Hand-assembled in LaGrange, KY by US Veterans

The K-9 Medical Simulator is designed for classroom integration, trauma lanes and field training scenarios. Multiple appendage options present a variety of wounds including gunshot, blast and burns to provide full mission profiles in combat scenarios, disaster re-creations and mass casualty events.

This K-9 Simulator is developed, and manufactured, by North American Rescue Simulation (NARS) and enhances Tactical Combat Casualty Care (TCCC) instruction from Point of Injury to transfer of higher care. This all-in-one system allows instructors to build multiple realistic traumatic casualty scenarios with reactive patients. A 1-year warranty is included with each simulator.

Includes wearable fur vest with multiple hook & loop injury attachment sites. Wounds include small caliber GSW entry and exit wounds, large caliber GSW entry and exit wounds, impaled object, packable laceration, massive soft tissue facial injury (muzzle-style wearable wound), fur patches to cover hook and loop attachment sites. Injuries and fur vest hand washable.

Interventions supported:

  • Hemorrhage control
  • Chest seal application
  • Advanced airway management
  • CPR chest compressions
  • Bilateral needle decompression
  • GVD needle decompression
  • Hyperthermia
  • IV/IO

Environment Specs:

  • Operating: -20°C to 60°C (-4°F to 140°F) MIL-STD-810G, Method 501.5 Procedure II
  • Storage: -40°C to 70°C (-40°F to 158°F) MIL-STD-810G, Method 501.5/502.5 Procedure I
  • Drop / Shock: 26 drops from 1.2 m (4 ft) MIL-STD-810G, Method 516.6 Procedure IV
  • Vibration: MIL-STD-810G, Method 514.6 Procedures I, II
  • Sand / Dust: IP65, IEC 60529
  • Water: IP65, IEC 60529
  • Humidity: 0 ~ 95% (non-condensing) MIL-STD-810G, Method 507.5
  • Altitude: 4572 m (15.000 ft) MIL-STD-810G, Method 500.5 Procedure I


  • Dimensions: L 8.8 in. x W 5.7 in. x D 0.9 in.
  • Weight: 2.18 lbs
  • Processor: Intel® Pentium® N3710 1.60 GHz (2.56 GHz boost) 64-bit quad-core
  • 8” capacitive multi-touch 1280×800 pixels
  • Sunlight readable, 600 nits Glove/rain mode
  • Chemically strengthened glass
  • Battery: 7.6V 5200 mAh (39.52 Wh) Hot-swappable


  • K-9 Simulator Weight: 60 lbs
  • Packaged Weight: 100 lbs
